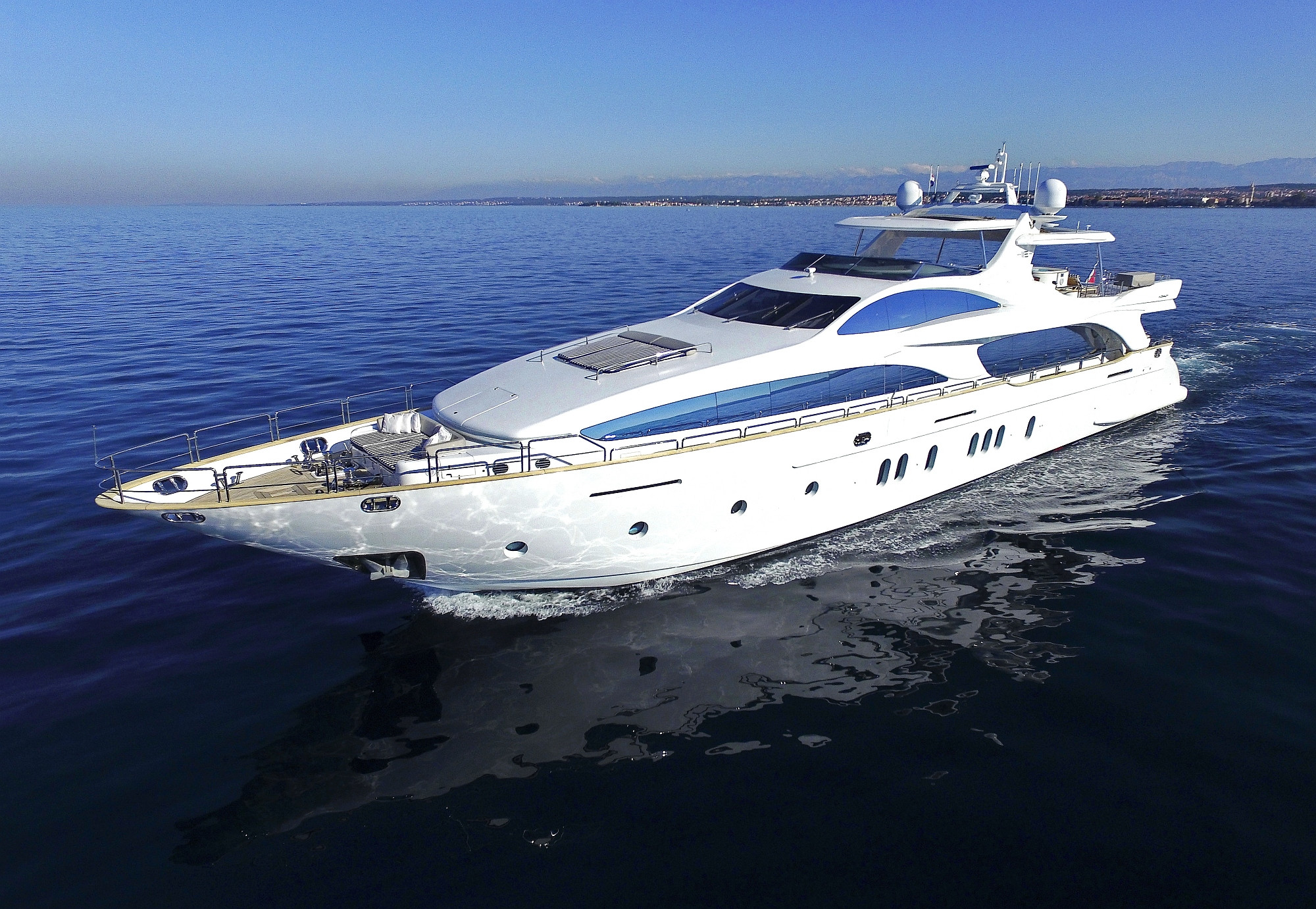

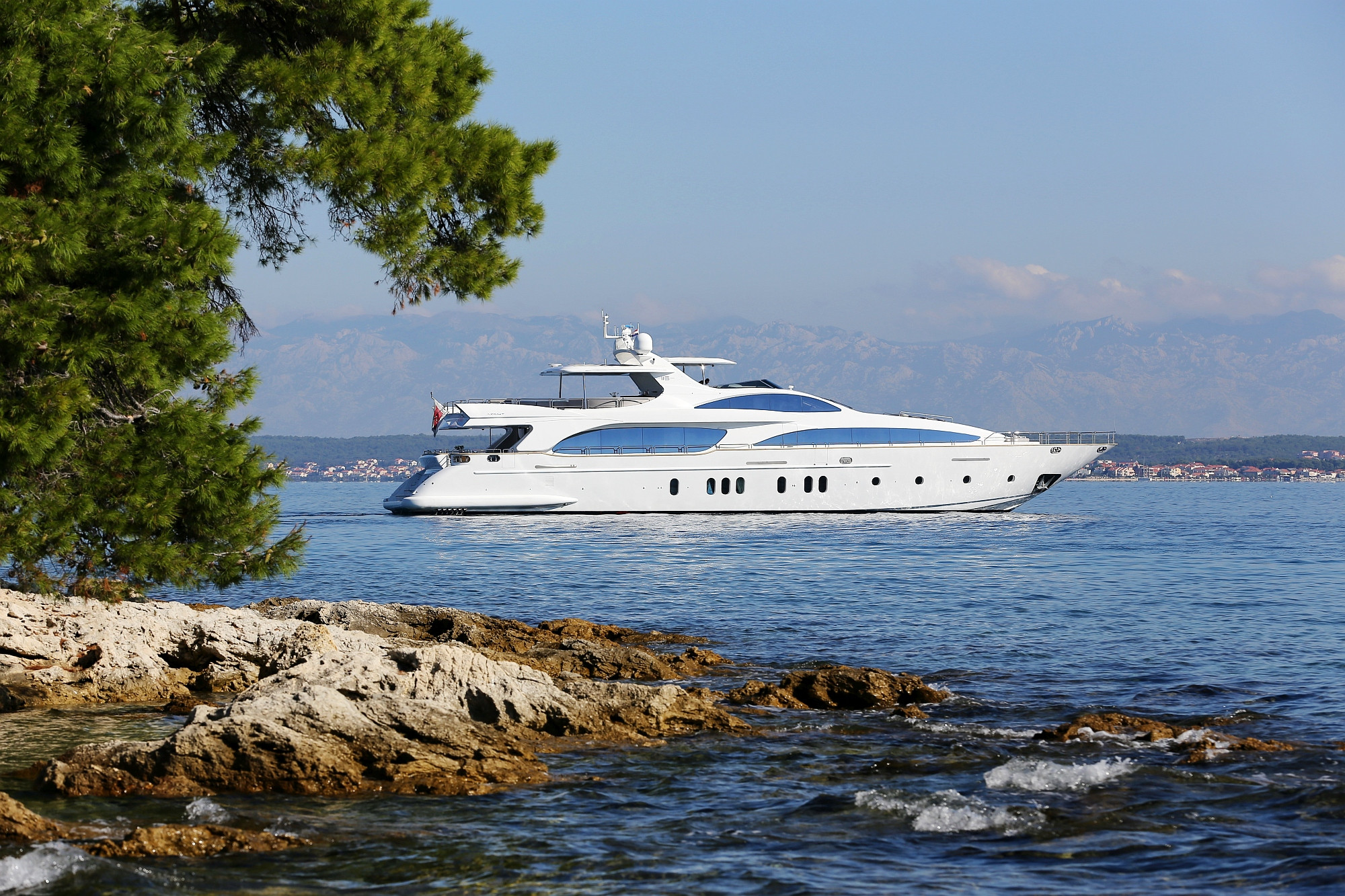

Azimut 116 Grande Artemy

Accomodation

Owner: Master cabin below deck mid-ships with separate access, walk-in wardrobe and en-suite bathroom with large bath tub

Guests:
2 x Double cabins below deck port & starboard, both with en-suite shower rooms
2 x Twin cabin below deck with en-suite shower room and Pullman berth

1 x GYM

Crew: Total 6 crew
Captain's cabin (2 crew)
2 x crew cabins (4 crew)


Equipment
Gear Boxes: 2 x V Drive with universal joints
Propellers: Nibral Propellers, diameter 1180mm
Fuel Consumptions: 800 lt. /h. @ 22 knots
Range: 480 n. miles @ 17,5 knots

Generator hours:

- Portside: 3964 hrs
- Starboard: 3931 hrs

Main engine hours:
- Portside: 1930 hrs
- Starboard: 1922 hrs

Electrical System
Generators: 2 x 70kW Kohler Generator
Shore Power: Cantalupi Electrical System
Converter: Cantalupi Electrical System
Electricity: A/C electrical - 380/220 V
D/C electrical - 24 V
Internal/external lighting: all lights are L.E.D.
APC 750VA 230V Smart - UPS 10 000watts

Batteries
Group of 24V gel batteries 720Ah, for lighting, signaling, low power users.
Group of 24 V leaded batteries 480Ah, for main engines starter.
Two new groups of 12V gel batteries 145 Ah, for generators starter.
Group of 24V gel batteries 220Ah for electronics, intercom and emergency
Group of 24V leaded batteries 100Ah for MTU electronics.

Battery Chargers:

Automatic MasterVolt battery charger for service batteries, 100A.
Automatic MasterVolt battery charger for emergency batteries, 30A.
Automatic MasterVolt battery charger for MTU electronics batteries, 25A.
Automatic MasterVolt battery charger for emergency charging of main engines starter batteries,25A.
Automatic Mastervolt battery charger for generators batteries, 25A.
Alternator on each main engine charging main engines starter sets.
Alternator on each generator charging generator starter batteries set.
Lines for 24V D.C. users, coming from main panel, are protected by magneto-thermic switches or fuses.

Safety and Fire Protection:

Safety: Smoke detector and extractor (garage)
Alarms: General, cumulative, fire, 10 inflatable Solas LifeJackets, 10 hard foam Lifejackets in cabines
Security: CCTV CAMERA SYSTEM AXIS
N.5 IP SPEED DOME PTZ 23X IP66 AXYS – Managed by Server and records on network hard drive.

LOCATION: AFT DECK (2), ENGINE ROOM, TENDER GARAGE, MAST
Colour Dome Cameras
LOCATION: AFT DECK (2), ENGINE ROOM, TENDER GARAGE, MAST

Ancillary Equipment:
Steering System: Piangiani
Oil/Water Separator: Racor 500 MA
Rudder Angle Indicator: Raymarine
Fire/Bilge Pump: Gianneschi and Ramacciotti
Bow Thruster: Hydraulic 65hp Bow Thruster (American BOW Thruster – Service Hydraulic Command August 2015 – New Direction Valves)
Fuel Treatment System: Alfa Laval system with discharge in oil change tank
Stabilizers: TRAC Zero Speed
Air Conditioning: Tropical CruisAir 250,000 BTU air conditioning and brush less hair handlers in guests areas
Fuel Separator & Filters: Racor 1000MA
Dessalator Watermaker 280L/H
Octo-Marine water softner (NEW 2015)

Communication Equipment:
VHF
1 Sailor RT5022 DSC Class A VHF 24VDC
1 Sailor N163S 110/220 VAC to 24VDC (7A) Power Supply
1 Comrod 8' VHF Antenna -
1 Procom flange 1"Deck antenna mount
1 Sailor CB5009 Connection Box for RT5022 (Bridge)
2 Sailor CU5000 Semi-intelligent Control Unit (Fly Bridge and Crew Mess)
2 Icom Waterproof VHF Marine Handheld Transceiver
6 FM transceiver ICOM PRO
1 Icom Survival Craft 2 - Way GMDSS VHF Marine Transceiver

TELEPHONE SYSTEM

1 Panasonic KX TDA30 Hybrid IP PBX Telephone System
1 Panasonic KX-TDA3180 4 Port CO Card
2 Panasonic KX-TDA0141 2 Channel Cell Station
LOCATION: WHEELHOUSE
1 Panasonic KX - T7633 24 Btn Digital LCD Speakerphone - Black
LOCATION: MASTER STATEROOM, MAIN SALON
2 B&O Beocom 6000 Cordless Telephone -Black
LOCATION: GUEST CABINS (2), VIP CABINS (2), CREW MESS
5 B&O Beocom 1401 Wallmount Telephone –Black
1 THRANE&THRANE Irridium (Bridge)

EPIRB
1 Sailor SE406 - II Satellite EPIRB w/automatic release bracket

Navigational Equipment

FLYBRIDGE
1 Furuno NavNet2 Radar/Chart plotter (24VDC)
(Includes: RDP149/NT 10.4" colour LCD Display,RSB0072 - 060 Gearbox w/12 kW Transceiver, PSU005
1 Furuno XN13A 6' Open Array Antenna
1 Furuno 10 Target Auto Plotter w/ PG500R

WHEELHOUSE

1 Jakob Hatteland 404P4 Rack Computer - 220VAC
3 Jakob Hatteland 15" Display Series II XGA - Flange Version
3 Jakob Hatteland Series II Display Controller - 24VDC
1 CHARTING PC (NEW 2015)
1 RS422 IO INTERFACE (NEW 2015)
1 TRANSAS SOFTWARE NS4000 (NEW 2015)
1 TRANSAS MEDITERRANEAN CHART FOLIO (NEW 2015)
1 TRANSAS AIS PLUG-IN (NEW 2015)
1TRANSAS ARPA PLUG-IN (NEW 2015)
2 FURUNO GP-33 GPS (NEW 2015)
1 NMEA AUTO-SWITCH INTERFACE (NEW 2015)
1 FURUNO SC-50 SAT COMPASS (NEW 2015)
1 FURUNO NAVTEX RECEIVER WITHOUT PRINTER NX-300 (NEW 2015)
1 FURUNO AIS TRANSPONDER FA-150 (NEW 2015)
1 FURUNO MULTI-FUNCTION RD-30 with FIX, Depth, Sea water Temperature (2008)

STEERING SYSTEM

1 Simrad AP50 Autopilot 1
1 Simrad AP50 Second Station Display w/15m 1
1 Simrad QS50 Joystick Controller 1
2 Simrad FU50 Follow - up Steering leaver 2

Deck Equipment:
Anchor Windlass: Maxwell 6000
Aft Warping Capstans: Maxwell 3000
Passerelle & Side Ladders: Marquipt ladder/Side boarding gates/Opacmar
Passerelle

ANCHORING RIG:
Anchors: 2 x 180kg
Chains: 2 x 125m
Swimming Platform: Launching and recovering system for Jet Ski
Launching and recovering system for tender
Awning: 2 x Sun Roof Automatic Switch Sundeck


Audio and Visual Equipment:

MAIN SALON

N.1 KALEIDESCAPE 1U LIFE SERVER SYSTEM
N.1 KAL-KPLAYER-5000 KALEIDESCAPE KPLAYER-5000 VIDEO
N.1 KAL-KPLAYER-5000 KALEIDESCAPE KPLAYER-5000 MUSIC PLAYER2
N.5 CROWN AMPLIFIER CT8200
N.1 DUNE NETWORK MULTIMEDIA PLAYER
N.1 SAMSUNG UE65HU7500 – 65 INCHES
N.1 LIN-CLASSIK-M LINN CLASSIK MOVIE
N.5 PAIRS OF SPEAKERS SONANCE – VP66R
N.2 LIN-SIZMIK-10.25KUST LINN SIZMIK 10.25 KUSTOM SUBWOOFER
N.1 DLI-DWL-2200AP D-LINK WIRELESS ACCESS POINT
N.1 CRE-TPS-2000L CRESTRON 5" ACTIVE MATRIX COLOUR WALL MOUNTTOUCHPANEL
N.2 LAN SWITCH 24 PORTS PACKAGE
N.1 DSP AUDIO XILICA XP8080
N.1 SONY PLAYSTATION 4
N.1 KARAOKE SYSTEM WITH 2 MICROPHONES
N.1 AUDIO MIXING TABLE ALLENHEAT
N.1 AIRPORT EXTREM ACCESS POINT
N.1 APPLE IPAD
ACCESS TO ALL MEDIA AND AIRPLAY

RACK

N.1 CRE-AV2 CRESTRON AV2 DUAL BUS CONTROL SYSTEM
N.1 PW-1210RU POWER SUPPLY
N.2 CRE-CNX-BIPAD8 CRESTRON PROFESSIONAL STEREO AUDIO DISTRIBUTION PROCESSOR
N.1 CRE-CNX-PAD8A CRESTRON 8-SOURCE/8-ROOM STEREO AUDIO DISTRIBUTION PROCESSOR
N.1 CRE-CNX-PVID8X4 CRESTRON PROFESSIONAL VIDEO DISTRIBUTION SYSTEM
N.1 DUNE HD BASE 3D NETWORK MEDIA PLAYER (FOR FLYBRIDGE)
N.2 AIRPORT EXTREM ACCESS POINT
N.1 PACKEDGE ROUTER RE-2.
N.1 PACKEDGE SWITCH 12 PORT – S8HAV
N.1 SERVER DELL POWERAGE R220
N.1 HDMI TRANSCEIVER
N.8 SATELLITE RECEIVER FRANSAT ASTON EUTELSAT HD
N.1 KVH SATELITE TV ANTENA CONTROLER AND SWITCH
N.1 QNAP 12TB NETWORK HARD DRIVE

WHEELHOUSE

N.1 PIO-DEH-3900MP PIONEER CAR STEREO CD/MP3 W/FRONT AUX-IN FOR IPOD
N.1 SPE-CRS5.2 SPEAKER CRAFT 130MM ROUND COAXIAL 50W SPEAKER PAIR
N.1 CRE-TPS-4LB CRESTRON 3.6" COLOUR WALL MOUNT TOUCHPANEL – BLACK
N.1 SERVER MONITOR
N.1 GSM ROUTER

AFT DECK

N.1 AQI-LCD-32 AQUIVO 32" LCD WATERPROOF DISPLAY
N.2 IN-DISKREET LINN DISKREET ROUND CEILING MOUNT SPEAKER PAIR
N.1 CRE-CNX-B6A/B/W CRESTRON 6-BUTTON WALL-MOUNTED KEYPAD
N.1 CRE-B-G1-WPK CRESTRON WATER RESISTANT COVER KIT FOR CNX-B KEYPAD
N.1 APPLE IPAD
ACCESS TO DUNE, KALEIDASCAPE, AND AIRPLAY

FLYBRIDGE

N.1 AQ-CD-1R AQUATIC AM/FM/CD/MP3 CAR STEREO
N.1 JL AUDIO SUBWOOFER
N.3 PAIRS MBQ-NKD116 MB QUART NKD-116 6.5" MARINE SPEAKER
N.1 IPAD
ACCESS TO DUNE AND KALEIDASCAPE AND AIRPLAY

BOW AREA

N.1 MBQ-NKD116 MB QUART NKD-116 6.5" MARINE SPEAKER PAIR
N.1 POL-IC-3.5-PM POLYPLANAR MP3/IPOD RADIO SATELLITE ADAPTER
N.1 CRE-CNX-B6A/B/W CRESTRON 6-BUTTON WALL-MOUNTED KEYPAD
N.1 CRE-B-G1-WPK CRESTRON WATER RESISTANT COVER KIT FOR CNX-B KEYPAD

GYM

N.1 MIR-46MIRROR-LCD MIRROR IMAGE NEW LIVING 46" MIRROR LCD TV
N.3 LIN-DISKREET LINN DISKREET ROUND CEILING MOUNT SPEAKER PAIR
N.1 LIN-SIZMIK-10.25 LINN SIZMIK 10.25 SUBWOOFER
N.1 NAD-L73/EU NAD ELECTRONICS DVD RECEIVER
N.1 KAL-KPLAYER-5000 KALEIDESCAPE KPLAYER-5000 MOVIE/MUSIC PLAYER2
N.1 AIRPORT EXPRESS ACCESS POINT


CREW MESS

N.1 SAM-LE-32R86BD SAMSUNG 32" LCD HDTV READY TELEVISION
N.1 BOS-BV6000 BOSS AUDIO MOBILE DVD/MP3/CD RECEIVER
N.1 PAIR SPE-CRS5.2 SPEAKER CRAFT 130MM ROUND COAXIAL 50W SPEAKER

N.1 IPAD AIR

GALLEY

N.1 PIO-DEH-3900MP PIONEER CAR STEREO CD/MP3 W/FRONT AUX-IN FOR IPOD
N.1 OEM-SC-520KE OEM 5-1/4" 2-WAY KEVLAR SPEAKER PAIR

MASTER CABIN

N.1 SAMSUNG UE48HU7500 48 INCHES
N.1 KAL-KPLAYER-5000 KALEIDESCAPE KPLAYER-5000 MOVIE/MUSIC PLAYER2
N.1INTEGRA AUDIO/VIDEO RECEIVER DTR30.6
N.1 DUNE HD BASE 3D NETWORK MEDIA PLAYER
N.1 AIRPORT EXPRESS ACCESS POINT
N.1 POLKAUDIO PSW 111 SUBWOOFER
N.1 CRE-MP2E CRESTRON COMPACT CONTROL SYSTEM W/ ETHERNET
N.1 INCLUDES: PW-2410RU POWER SUPPLY
N.1 IPAD

2 x VIP CABINS

N.2 SAM-LE-32R86BD SAMSUNG 32" LCD HDTV READY TELEVISION
N.2 NAD-L54/EU NAD ELECTRONICS DVD RECEIVER
N.2 KAL-KPLAYER-5000 KALEIDESCAPE KPLAYER-5000 MOVIE/MUSIC PLAYER2
N.2 PAIR LIN-DISKREET LINN DISKREET ROUND CEILING MOUNT SPEAKER
N.2 XAN-RS41AV XANTECH IR REMOTE CONTROL A/V SWITCHER
N.2 PAIR LIN-SWEETSPOT LINN SWEETSPOT MINI SPEAKER (BATHROOM)
N.2 AIRPORT EXPRESS ACCESS POINT
N.2 CRE-CNX-B6A/B/W CRESTRON 6-BUTTON WALL-MOUNTED KEYPAD
ACCESS TO AIRPLAY

2 x GUEST CABINS

N.2 SAM-LE-19R86 Samsung 19" Widescreen HD ready LCD TV
N.2 NAD-L54/EU NAD Electronics DVD Receiver
N.2 KAL-KPLAYER-5000 Kaleidescape Kplayer-5000 Movie/Music Player2
N.2 LIN-DISKREET Linn Diskreet round ceiling mount Speaker PAIR
N.2 XAN-RS41AV Xantech IR Remote Control A/V Switcher
N.2 LIN-SWEETSPOT Linn Sweetspot mini Speaker PAIR
N.2 AIRPORT EXPRESS ACCESS POINT
N.2 CRE-CNX-B6A/B/W CRESTRON 6-BUTTON WALL-MOUNTED KEYPAD
ACCESS TO AIRPLAY

CAPTAIN'S CABIN

N.1 SAM-LE-19R86 Samsung 19" Widescreen HD ready LCD TV
N.1 BOS-BV6000 Boss Audio Mobile DVD/MP3/CD Receiver
N.1 OEM-SC-520KE OEM 5-1/4" 2-Way Kevlar Speaker PAIR

2 x CREW CABINS

N.4 Boss Audio DVD w/10.4" flip down TFT Monitor
N.2 PIO-DEH-3900MP Pioneer Car Stereo CD/MP3 w/front Aux-in for iPod 2
N.2 OEM-SC-520KE OEM 5-1/4" 2-Way Kevlar Speaker PAIR

Galley and Laundry

Galley: Miele
Laundry:
1 x Miele Professional PW 6065 Washing Machine
1 x Miele Professional Dryer PT7136 Plus
Refrigeration: Frigomar
Bars: 2 x u-line Air cooled Ice maker

Other Equipment:

Jacuzzi Dip Pool: Jacuzzi for 4 persons on sundeck w/separate shower
Deck Furniture: 4X Teak bench (fly deck)
Sunbathing mattresses (bow area)
Ship Safe: 1 x Master
Electric BBQ on fly bridge

Tender & toys

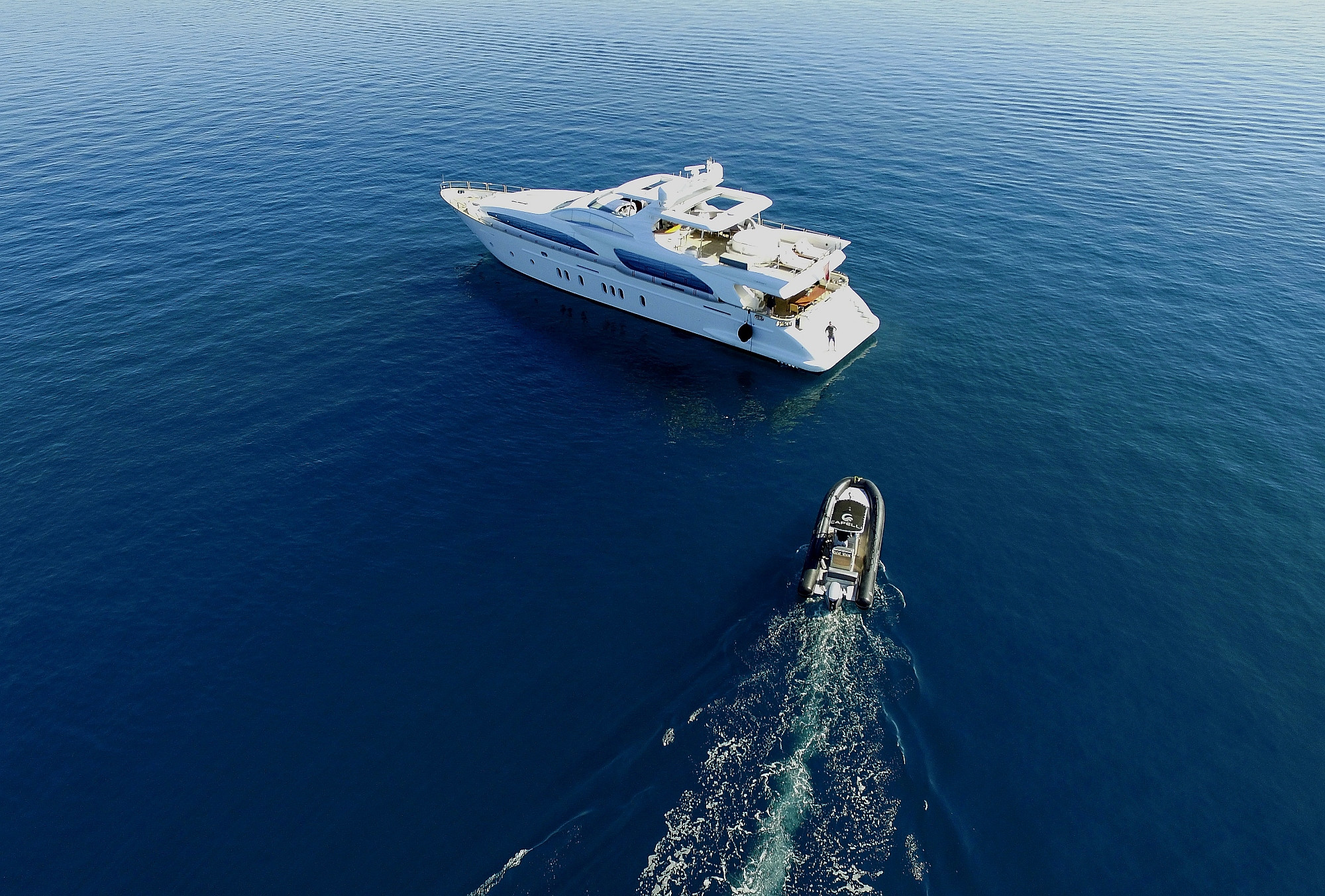

Tenders: Tender equator 500, Volvo 140hp engine
Diving Equipment: Full diving equipment for 4 persons
Jet Skis: Yamaha GP1300
3 x SEA BOB – 2x Cayago (old) and one FS (2014)
2 Inflatable Kayacs (NEW 2015)
1 Pair of Adult water skies
1 Pair of child water skies (NEW 2015)
2x Wake Boards
2x Mountain bike (NEW 2015)
1x Thread mill TechnoGym (NEW 2015)
1x Standing Bike Techno Gym (NEW 2015)
1x Multi function fitness machine TechnoGym (NEW 2015)
1 Press Bench TechnoGym (NEW 2015)

REFIT AND MAINTENANCE 2014 / 2015:

Technical and maintenance

• MTU servicing
• Generator servicing – 3000 Hours servicing
• All cutlass bearings and complete re –alignment of the system shaft-gearbox-engines
• Engine bulkhead and AC compressors noise and vibration insulation
• Water maker and Stabilizer hydraulic pumps noise and vibration insulation
• Steering Rams Installation Servicing
• Trim Tabs Servicing
• Gangway overall
• Garage door, Hydraulic Power pack and valve block overall
• Main Engine raw water suction valves new
• Engine (2x) and service (2x) sea chest valves new
• Half Pump vessel rig Serviced
• Sea water piping full flush and cleaning
• Hydraulic piping network overall
• Dryer air duct to be changed
• Stabilizer pressure switches (2x)
• Stabilizers fins anodes
• New hydraulic cooling system discharge valves (x3)
• Toys cradle maintenance
• Saloon automatic doors serviced
• Restore communication between Port Generator and monitoring system
• Tender maintenance
• Jetski work maintenance
• Ceiling light repairs
• Watermaker servicing
• Jets system maintenance
• Compass swing
• New generator mounts – upgrade to high dampening capacity fluid mounts
• Owner’s stairs insulatio
• New garage vent fan
• Service windlass
• Service aft cap stains.
• Clean and mark anchor chain.
• Water Maker High Pressure pump service
• Change Black and grey tank filters
• Replace damaged Insulation in saloon
• Connect Galley sink to sump box to stop smells from tanks coming into the galley
• Insulation under Owners Stairs
• New grids for ice maker ventilation
• New Air ducting
• New Generator batteries

Air conditioning and fridges works

• Maintenance
  • Complete service of the AC production units
  • Complete service of one chill water circulation pump (2 on board)
  • Complete service of one sea water cooling pump (2 on board)
  • All fridges door seals to be replaced
  • Servicing of the three fridges compressor units
  • Modification of the cooling capacity for the galley fridges
• Repairs
  • Galley upper fridge and freezer units

• Modifications
  • Aft-deck Ice Maker
  • Fan Coils (Air handlers) Install of brush less fan coils in the guest areas

Cosmetic

• Hull and superstructure paint work
• New venere in crew mess’ doorway and fly bridge companion way
• Kitchen Plan repair
• Bridge’s Stairs Repair

• Engine room bilges cleaned and painted
• Paint Bosons locker
• Detail deck chairs
• Polishing of port holes and windows.
• Varnish tables, bar top, and Cap rail
• Reseal Bathroom silicon in Guest and crew bathrooms
• 4 ceiling panels in the Crew area painted white

Equipment

• New Fly Bridge shower
• Aft deck white mesh awning
• New Mixing Tap in Master’s bathroom
• Crew beddings
• Garage’s door fender
• New Inflatable Fenders
• Galley Hood motors and fan replaced
• New Crew mess sitting covers
• Pull up bar on the fly bridge installed for gym exercises
• New navigation equipment – List already updated
• Lifesaving appliances servicing
• New Tender Line and blocks
• Icemaker and drinking water filters to be replaced
• Plastic cover on floor
• New running machine cover

Audiovisual and IT works

• Guest Cabins – Integration of Ipod touch controls
• Master Stateroom – New HD 4K TV – Dune Video on demand, new subwoofer
• GSM System – addition of a second antenna
• CCTV renewal
• Main Saloon DSP Install
• Aft Deck control modifications through Ipad
• Fly Bridge stand-alone zone creation with access to Dune Media Player, new subwoofer
• Crew mess CCTV control through Ipad Air
• Infra-structure modernized, network updated and made quitter, centralized in the main Rack in the corridor
• Install of a 12TB Network Hard drive
• New Server
• Air Play throughout the boat
