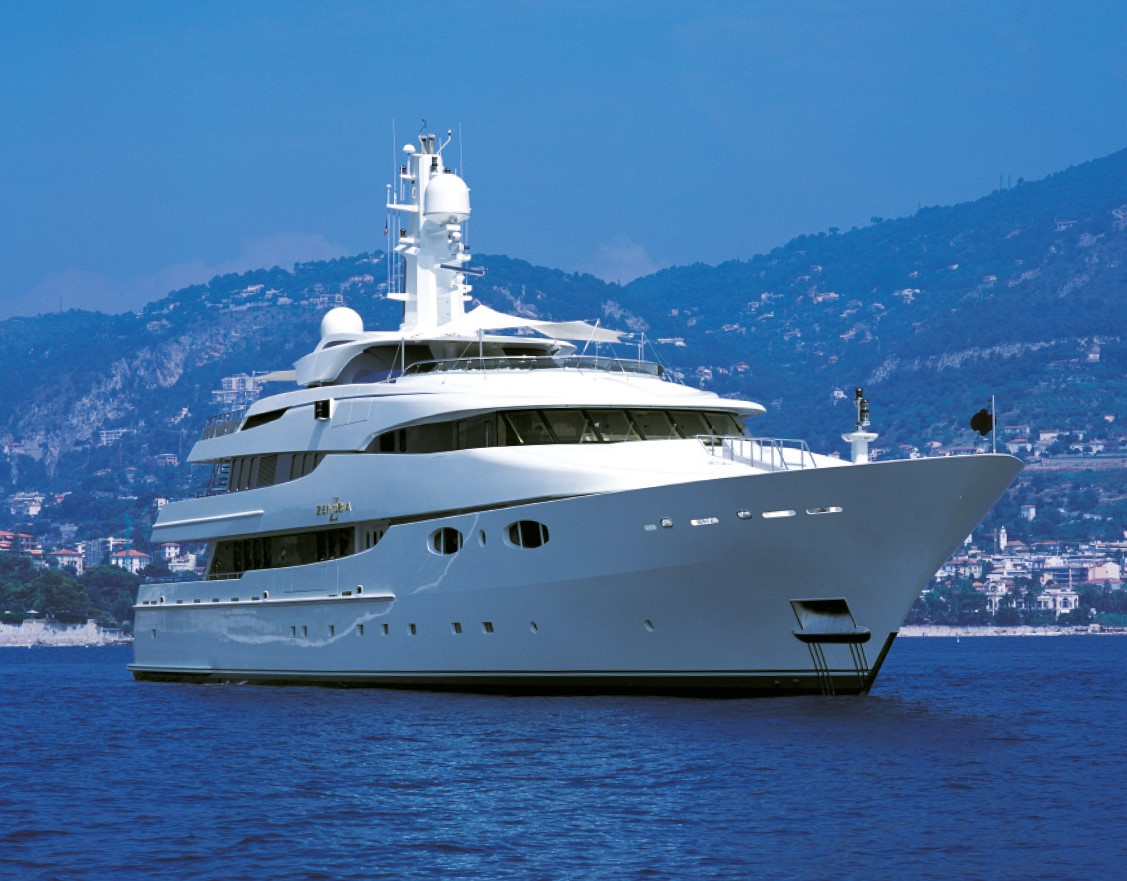

57m ZENOBIA

MACHINERY
MAIN ENGINES
~ 2 x 1,050hp Caterpiller diesel engines type 3516
SPEEDS & FUEL CONSUMPTIONS
~ Cruising speed about 14 knots for a fuel consumption of about
550 litres (146 US gallons) per hour
~ Economical speed about 12 knots for a fuel consumption of about
400 litres (106 US gallons) per hour
~ Maximum speed about 16 knots
RANGE
~ 4,500 n. miles approx. at economical speed
AUXI LIARY MACHINERY &
ELECTRICAL SYSTEM
GENERATORS
~ 2 x 240Kw Caterpillar generators
~ 1 x 85Kw emergency Caterpillar generator
ELECTRICITY
~ 230/400v AC, 3 phase, 50Hz
~ 230v AC, single phase, 50Hz
~ 24v DC
TANK CAPACITIES (approx imate)
FUEL
~ 162,000 litres (42,796 US gallons)
WATER
~ 38,000 litres (10,039 US gallons)
WATERMAKERS
~ 2 x HEM Reverse Osmosis plants rated at 15,000 litres (3,963 US
gallons)/day each unit
LUB OI L
~ 3,000 litres (793 US gallons)
ANCI LLARY EQUIPMENT
STEERING SYSTEM
~ Twin synchronised spade rudders, Hydro Control steering gear
BOWTHRUSTER
~ 1 x Schottel 168hp (125Kw) bowthruster
STABI LISERS
~ KoopNautic SEA ROCQ 4080 non retractable active fin stabilisers
FIRE/BI LGE PUMP
~ 2 x Interchangeable fire/bilge/anchor wash pumps
~ 1 x Emergency fire pump
BOI LERS
~ Hot water from 2 x electric calorifiers each with approx 500 litres
(132 US gallons) capacity
SEWAGE TREATMENT SYSTEM
~ Hamann waste treatment plant (USCG approved)
WC’s
~ Evac vacuum toilet system
AIRCONDITIONING
~ Ducted air system by W Sick GmbH
SAFETY &
SECURITY EQUIPMENT
SAFETY
~ 2 x Jotron SARTs
~ 1 x Jotron Tron 40S EPIRB
~ 4 x RFD ‘Surviva’ 20 person inflatable liferafts with hydrostatic
releases
~ 26 x Immersion suits
~ 74 x Lifejackets (including 10 child size)
~ Full MCA Category A medical kit
FIRE FIGHTING
~ Fixed CO2 extinguishing system in the engine room and galley hood
~ 2 x Sabre breathing apparatus with full fire suits
~ Portable fire extinguishers and sprinkler system throughout
ALARMS
~ Intrusion and fire alarm systems throughout the yacht
COMMUNICATION EQUIPMENT
SATCOM
~ 2 x Nera Saturn B Inmarsat terminals with voice, fax and data
~ 1 x Sailor Sat C terminal
CELLULAR SYSTEM
~ 2 x Nokia Premicell dual band GSM telephones
RADIOTELEPHONES
~ Range of VHF and UHF radiotelephones
TELEPHONE EXCHANGE
~ Panasonic digital PABX
NAVIGATION EQUIPMENT
MAGNETIC COMPASS
~ Cassens & Plath 160 magnetic compass with Reflecta binnacle
GYRO COMPASS
~ 2 x Anschutz Standard 20 gyro compasses
AUTOMATIC PI LOT
~ Anschutz Nautopilot
RADAR
~ 2 x Furuno 2105 Series navigational radars with ARPA
GPS
~ 2 x Leica Mk12 GPS terminals
DECK EQUIPMENT
ANCHOR WINDLASS
~ 2 x Steen hydraulic anchor windlasses with warping capstans
AFT WARPING CAPSTANS
~ 2 x Steen hydraulic warping capstans
GROUND TACKLE
~ 2 x Stockless High Holding Power Anchors - 765kg (1,687lbs) each
BOAT CRANE & DAVITS
~ Abeking & Rasmussen custom over the stern tender launching
system
~ 1 x Gilbert & Schmarlriede 8kn rescue boat/waverunner crane
BOARDING ARRANGEMENTS
~ 1 x 16ft (5.00m) passerelle
~ 1 x Hydraulic side accommodation ladder with self levelling steps -
stbd side, complete with swimming ladder fitting
SWIMMING PLATFORM
~ Electric hydraulic stern door lowers to form swimming platform
with swimming ladder
AUDIO/VISUAL
ENTERTAINMENT SYSTEMS
~ Satellite television
~ 42in (107cm) Plasma screen televisions
~ Televisions, video & DVD
~ Stereo music systems
~ 3 x Jukebox installations
DOMESTIC EQUIPMENT
~ Fully equipped galley and laundry
TENDERS &
WATERSPORTS EQUIPMENT
~ 1 x 25ft (7.62m) Special Craft
~ 1 x 19ft (5.79m) Novurania Equator LP
~ 1 x 14ft (4.20m) Zodiac Ribo
~ 2 x Yamaha GP 800 waverunners
~ Waterskis & tows

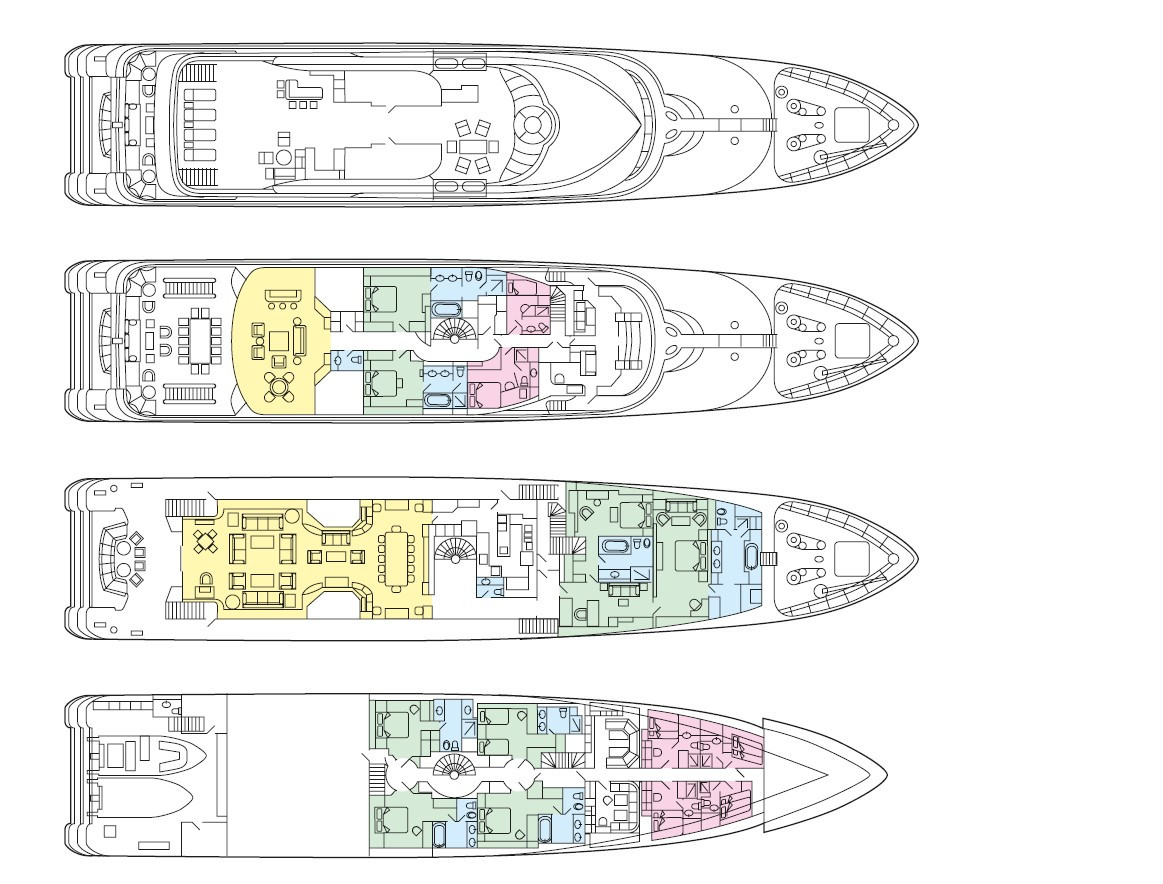

ACCOMMODATION
OWNER
~ Full width Owner’s suite featuring 2 double cabins each with
bathroom en suite and adjoining saloon/study
GUESTS
~ 2 x VIP double cabins each with bathroom en suite
~ 2 x Double cabins each with bathroom en suite
~ 1 x Double cabin with shower room en suite
~ 1 x Twin cabin with shower room en suite
CREW
~ 1 x Captain’s double cabin with shower room en suite
~ 1 x Single staff cabin with shower room en suite
~ 6 x Twin upper and lower berth cabins each with shower room en suite
