HIGH ROLLER
Description of HIGH ROLLER

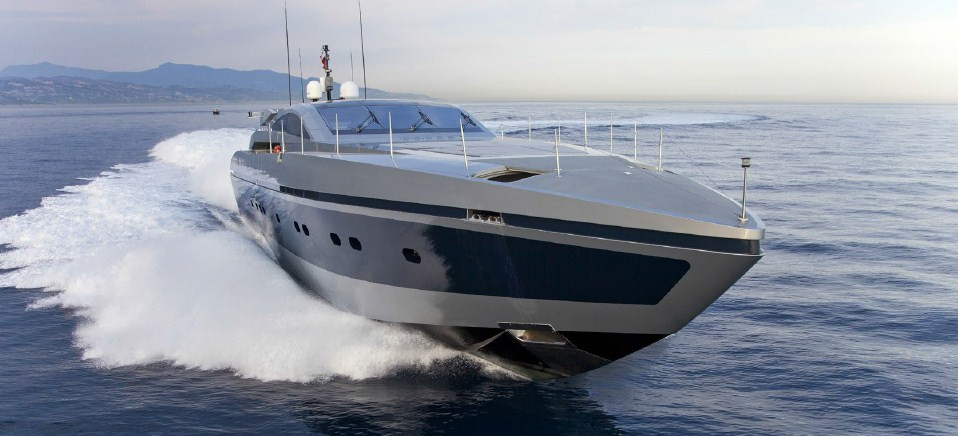

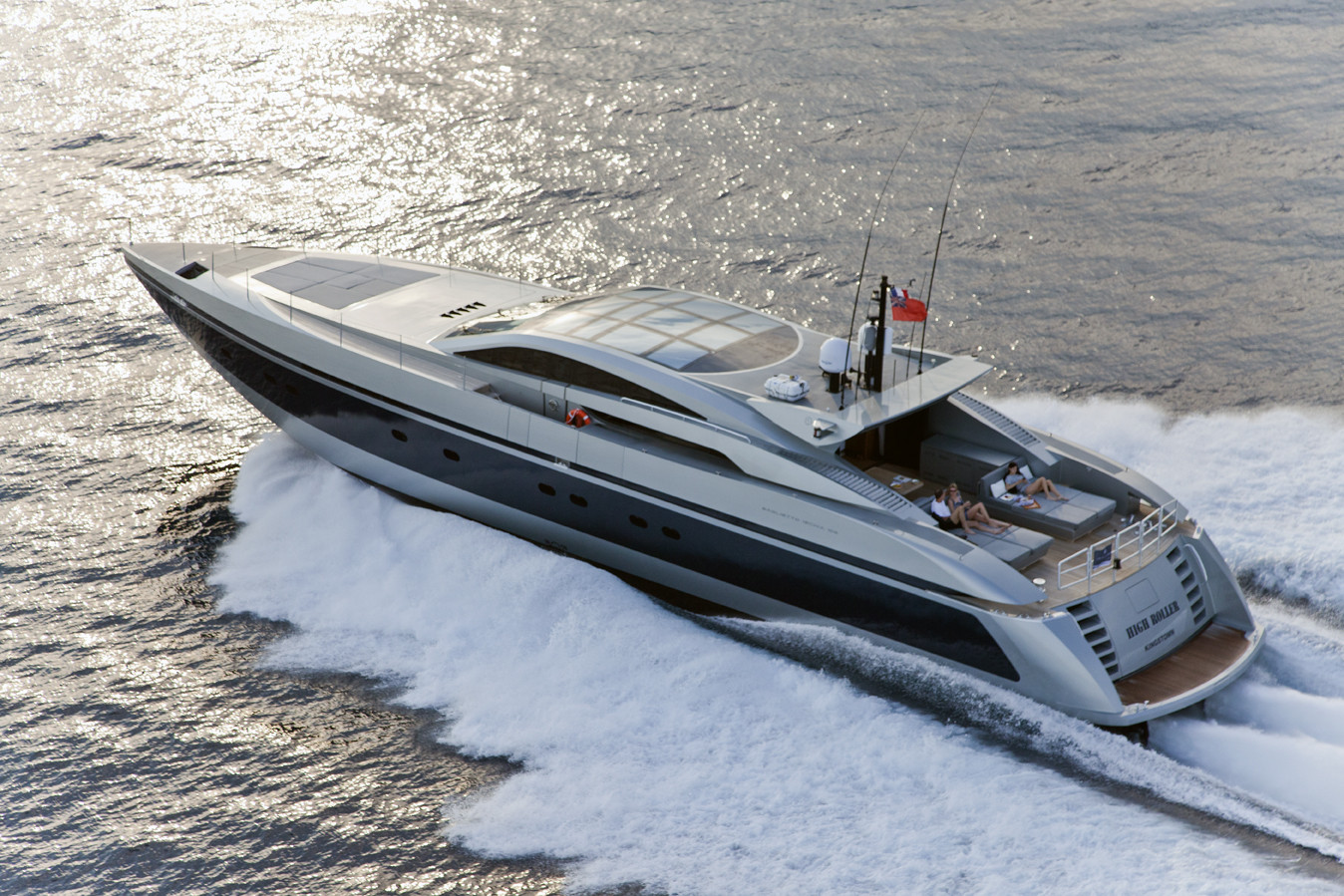

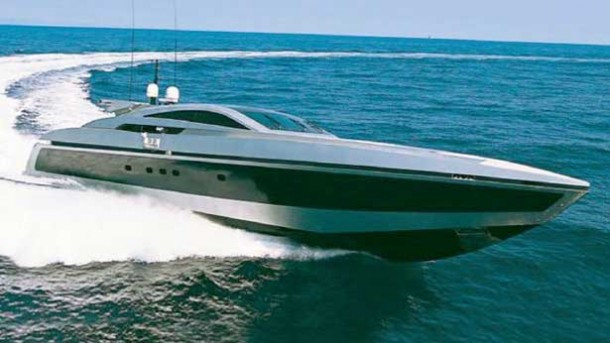

HIGH ROLLER is a high performance open yacht that was built in aluminium by Italian yard Baglietto to ABS class and designed by Francesco Paszkowski. Delivered in 2004, High Roller sleeps eight guests in three staterooms consisting of a master suite and two guest cabins, each of which has flexible berth arrangements and Pullmans.
Her interior is modern, using light and dark timber finishes complemented by soft white and cream furnishings.

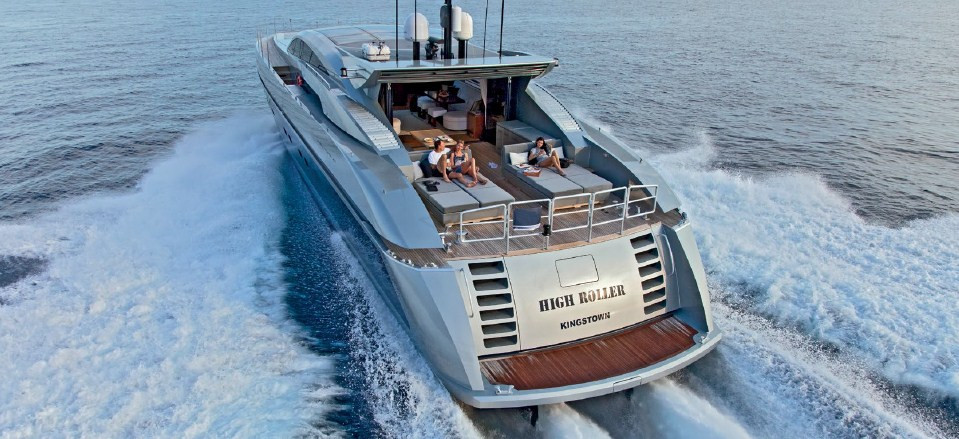

Her outside spaces comprise a large aft deck with sun pads and all the facilities for al fresco dining plus an expansive forward sunbathing area and an easily accessible bathing platform.
She cruises at 28 knots, getting up to 35 knots
Specification of HIGH ROLLER
|
ENGINES: |
2 x MTU 2,750HP |
|
ENGINE MODEL: |
12V4000 M90, 2,040 kW |
|
|
|
|
FUEL: |
DIESEL |
|
PROPULSION: |
WATER JETS |
|
GEARBOXES: |
2 x ZF (4,650 NR) - flexible mounts |
|
STEERING: |
2 x KAMEWA 63II type |
|
STABILIZERS: |
2 x trim tabs acting also as stabilisers |
Generators
|
GENERATORS: |
2 x Kohler of 40 kW, 380 V, 50 Hz |
Electricity
|
ELECTRICITY: |
28 VDC 120 A, 2-pole
|
|
SHORE POWER: |
25m cable w/ C.E.E., 3 phase 50 A 3P+N+T plug |
|
BATTERIES: |
All Gel type (+ new system in 2007 providing 3 extra years) Main Engine Start - Set batteries 360 Ah 24V recharged by alternator 6 x Cold starts for 1 x engine Service - 1 x Set Chargers 1 x manual, 2 x sets for charging gens, 2 x sets for charging engines Emergency - 24V for 8 hrs - all comm/navigation/lights Gen start - 2 x sets of 180 Ah each for 2 x gens Generator Start - 2 x Sets of batteries of 180 Ah each for 2 x gens
Emergency 24 V for 8 hours - all communication/navigation/ lights
|
Air Conditioning
Central with internal Heat Exchanger, sea water cooled, thermostats in each room
1 x Hermetic Air Compressor
Other Machinery
Bowthruster - Fixed- tunnel type, 35 kW –electric w/ soft start, joystick controlled
Desalinator - 1 x Idromar reverse osmosis w/7,000 litres/day
Water maker
Hot Water - 3 x Electric boilers of 80l each under accom. floor
Sea water separator
Toilet System - Jets Vacuum
Sewage System - Super Mini Hamann
Fuel Centrifuge/Separator - 2 x Each engine
Passerelle - Hydraulic
Exhaust - Gas turbocharging, charge air-cooling
Transformer - 1 x 3-phase 50 KVA 50 Hz 380/380 V 50 A
3P+N/3P+N+T plug
EXTERIOR
The deck is divided in three parts, under a uniform aluminium skin.
The aft part hides a Zodiac Yachtline of 4,20m tender and a water bike under a solid electro hydraulic cover; inside this storeroom there is a hidden crane for the launching, also painted in metallic grey, and there is enough space for the fenders and other voluminous equipment.
Just in front, there is the sun bathing area of more than four meters length, surrounded by clips to be able to fix a cover that covers up the long cushions, avoiding having to take them away.
The third area, at the forward end of the bow, accentuates the purity of the lines of the boat. The entire anchorage manoeuvre is hidden underneath flush hatch covers that conceal two windlasses and other large size fittings, to the point that a person can get inside up to half its height to be able to manoeuvre safely.
INTERIOR
Helm control station forward
1 x dining table for 12 people
1 x conversation area with 3 couches and 2 coffee tables
Modular layout with 3 double cabins
Teak floors
Versatile layout:
3 x double cabins or 1 x master cabin with double bed and study
2 x twin cabins with extra Pullman bed each
All cabins have en suite facilities.
Crew Quarters:
4 crew in 2 cabins
|
· Fridge for guests and a fridge for Crew |
· Freezer |
|
· Microwave |
· Oven |
|
· Dishwasher |
· Washing machine |
|
· Dryer |
|
Communications Equipment
|
· Mini M Sat Com |
· VHF (GMDSS A3) |
|
· SSB |
· EPIRP |
|
· Intercom in Wheelhouse |
· Internal communication - telephone exchange w/ 4 external lines & 12 internal connections, allowing internal & external communication, and is able to connect to GSM |
Navigation Equipment
|
· MAXSEA Electronic Charts |
· Magnetic Compass |
|
· Gyro Compass |
· Automatic Pilot |
|
· Echo Sounder with alarm and repeater: crew mess, master's cabin |
· Radar |
|
· Transponder |
· GPS colour w/alarm and repeater: crew mess, master's cabin |
|
· Log |
· Anemometer |
Entertainment Equipment
|
· General |
|
|
· 1 x TV Sat Antenna Sea Tel 2494 E with 60 cm dish & 80 cm Randome suitable for connection in Med Sea with Astra & Hot Bird sesa gyroscopic antenna (w/ Internet 64 kbit cabability) |
· 1 x Kit of 15m cables for antenna |
|
· 5 x Satellite receivers Humax |
· 1 x Mt 200 coaxial cable SAT703N for distribution |
|
|
|
|
· Entertainment |
|
|
· 1 x 42" Sony Plasma TV |
· 1 x Sony STR-CE675 Audio/video amplifier, Dolby Surround Prologic |
|
· 1 x Sony DVP-NS300 PAL/NTSC DVD Player multi standard |
· 1 x Video recorder Sony SLV-SE600B, tri standard (all the Mediterranean) with NTSC player |
|
· 1 x Bose System Acoustimass 6 complete with: · Loudness · 5 x satellites · 1 x Set of cables · 5 x Brackets Bose UB20 · 1 x Remote Control Sony RM-AV2100T |
|
|
|
|
|
· Main Deck |
|
|
· 1 x CD Player Sony CDX-CA650, 4 x 50 W, sensor for remote control |
· 2 x Couple of Sony XS-F1022 loudspeakers (diameter 10cm) |
|
· 1 x Watertight remote control for external areas Sony RMX10 |
· 1 x Couple of XS-MP61 Sony loudspeakers |
|
|
|
|
· Master Cabin |
|
|
· 1 x 55’’ LCD Samsung, multi standard, with side loud speakers |
· 1 x DVD player Sharp DV620S, PAL/NTSC, zone 2 (Europe/Japan) |
|
· 1 x CD player Sony CDX-CA650, 4 x 50 W, sensor for remote control |
· 1 x Infra-red remote control Sony |
|
· 1 x Couple of Sony XS-F1022 loudspeakers (diametre 10 cm) |
|
|
|
|
|
· Guest Cabins 1 & 2 |
|
|
· 2 x 15" LCD Sharp, multi standard |
· 2 x DVD player Sharp DV620S, PAL/NTSC, zone 2 (Europe/Japan) |
|
· 2 x CD player Sony CDX-CA360, 4 x 50 W |
· 2 x Couple of Sony XS-F1022 loudspeakers (diametre 10 cm) |
|
|
|
|
· Crew |
|
|
· 1 x 14" Sharp TV |
· 1 x CD player Sony CDX-CA360, 4 x 50 W |
|
· 1 x Couple of Sony XS-F1022 loudspeakers (diametre 10 cm) |
|
|
· Zodiac Yachtline of 4,20m tender |
· 1 x Skido 4 stroke Waverunner |
|
· Sun cover for the wheelhouse |
· Protection Awnings & canvas for Flybridge instrument panel, pilot seat |
|
· Sunbathing area |
· Bathing Platform |
|
· 1 x hot/cold shower on aft platform |
· 1 x 4.5m Electro-hydraulically, retractable ransom gangway, fibre optic illuminated |
|
· 1 x Swimming Platform built-in structure with hydraulic swimming ladders
|
|
|
· Anchor & Mooring System |
|
|
· Conform to classification society |
· 4 x Bollard medium size on aft deck |
|
· 4 x Bollard medium size on aft deck |
· 2 x Bollard medium size on fore deck |
|
· 2 x Fairleads on fore deck |
· 2 x Bollard medium size on side deck |
|
· 2 x Fairleads on side deck |
· 2 x Galvanized steel anchors with anchor swivel and shackle |
|
· 1 x 137m galvanized steel chain without stud, grade 2, sliding on stainless steel rolls |
· 1 x 110m galvanized steel chain without stud, grade 2 sliding on stainless steel rolls |
|
· 2 x Electric warping winches fitted on the main deck w/ aluminium capstan drums |
· 2 x Anchor windlasses fitted at bow on the main deck type “Télémécanique” fed by · 380V, 3-phase, 50 Hz power with motor of 3,500W each
|
|
· Security |
|
|
· Alarm panel in Wheelhouse |
· Monitoring & control system with the main station @ the wheelhouse area |
|
· 1 x CCTV System w/control unit and monitor in the wheelhouse allowing to select · the shots of each camera
|
· 4 x Small coloured cameras: aft, forward, engine room etc. |
|
|
|
|
· Safety |
|
|
· 2 x Self inflatable life rafts for 8 people each on external cockpit |
· 4 x Life Buoys (two w/ night lights) mounted @ vessel’s side |
|
· 16 x Personal life jackets |
· 1 x Self-inflatable life rafts for 8 people on hardtop |
|
· 21 x Personal Life Jackets |
· 1 x Radar reflector ECHO230 |
|
· 1 x Hand bearing compass IRIS 100 |
|
|
|
|
|
· Fire Fighting |
|
|
· 1 x CO2 Fire Fighting System in engine room |
· 1 x Main Fire Fighting System – Sea Water Type w/ 2 x Self-priming pumps |
|
· Fire hoses and nozzles – on the main deck |
· Fire & Smoke detection System throughout yacht |
|
· Portable powder and CO2 fire extinguisher |
· 1 x Full fireman's outfit with breathing apparatus |
|
· 5 x SOLAS approved Powder Extinguisher 6kg |
|
|
|
|
|
· Pumps |
|
|
· Bilge/fire fighting pumps |
· 2 x Sea water pumps |
|
· 2 x fresh water pumps |
· Pumps for air conditioning |
|
· 2 x Black water vacuum pumps |
· 2 x Lube oil circulation pump |
|
· Hanpump for lube oil extraction |
· PTO pump for Gearbox |
|
· 1 x Potable fire pump |
|

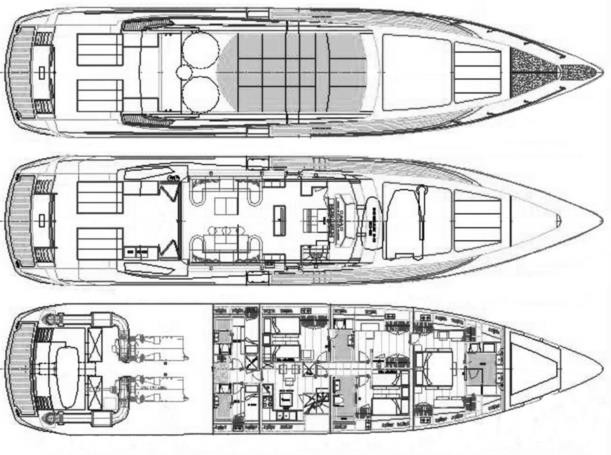

General Arrangement
